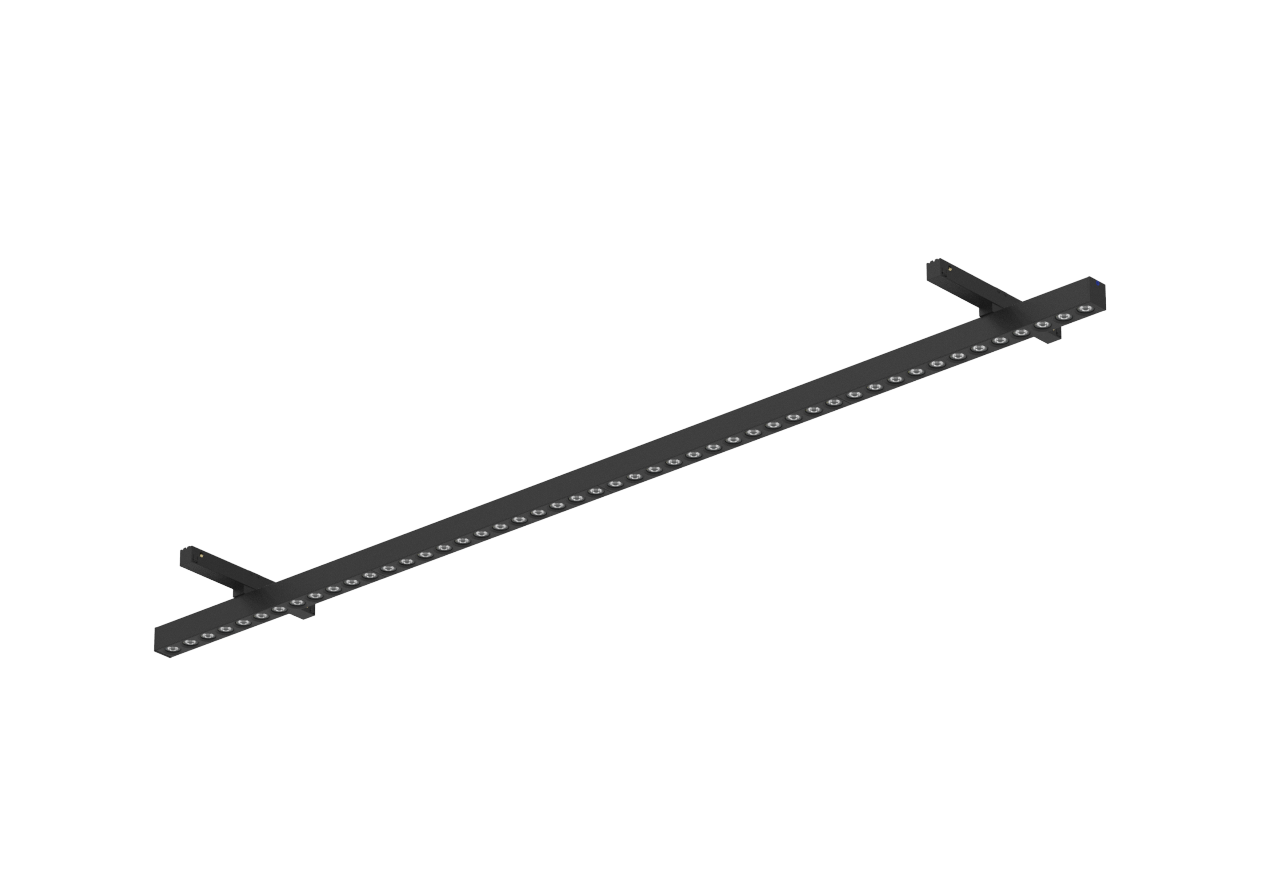

SENZAFINE EVO CROSS LENS
SENZAFINE EVO CROSS M22C
SENZAFINE EVO CROSS LENS
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polyamide cover. L(mm): 1125.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO CROSS LENS
technical specifications
SENZAFINE EVO CROSS LENS
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polyamide cover. L(mm): 1125.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22C1128/B3-A-2-E1
OpticsNARROW BEAM LENSES (A)
CRI95
ColourBlack
Control systemDALI
Luminous flux1555 lm
Power21.2 W
Efficiency73.4 lm/W
UGR<16
DetailsPolycarbonate Lens 20°
FamilySenzafine Cross
Product lineSENZAFINE EVO CROSS M22C
CCT3000 K
Length1125 mm
MacAdam≤ 3
Lifetime>50Khr L90B10
Variants144
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO CROSS LENS
dimensions
Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
