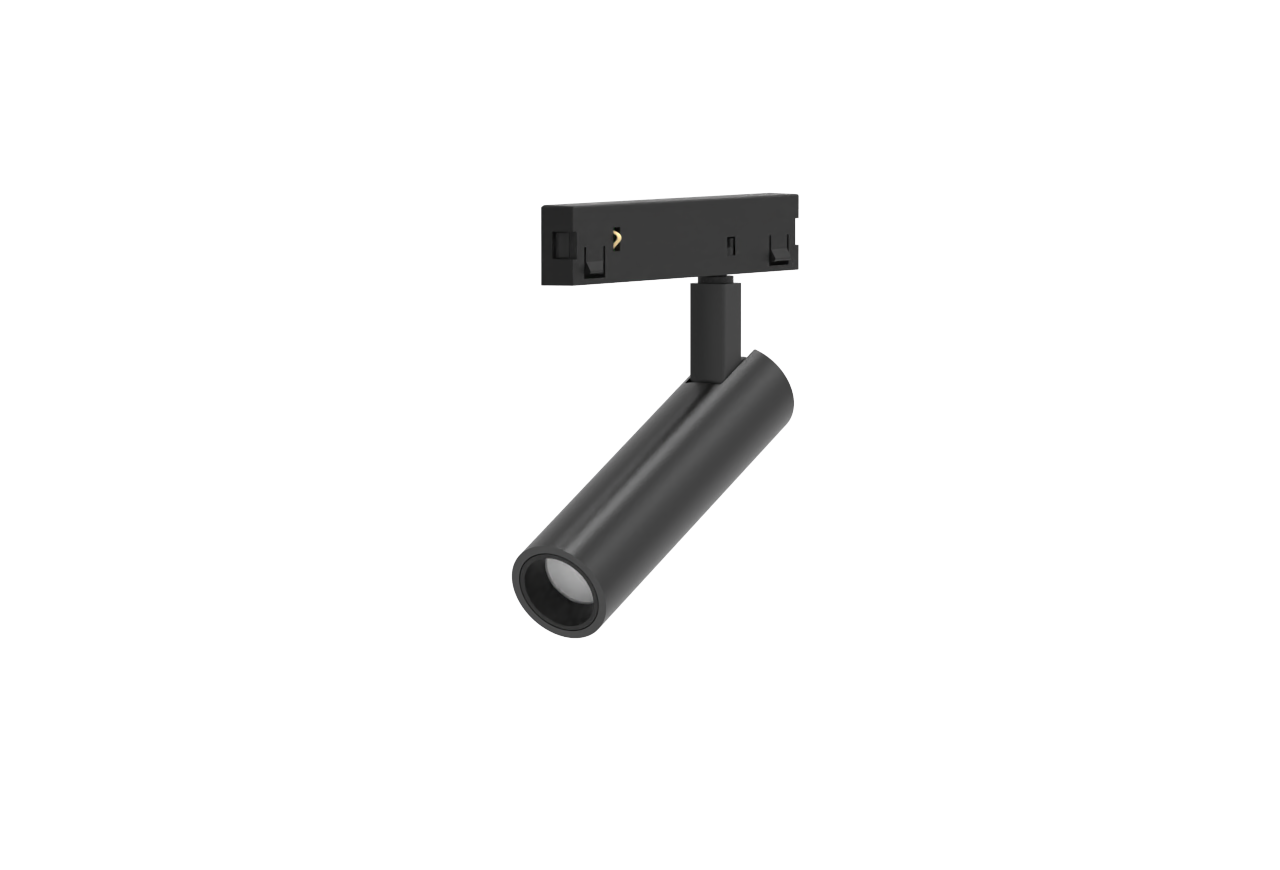

PUNTO SPOT CORE5 F14
PUNTO SPOT CORE5 F14
PUNTO SPOT CORE5 F14
Dimmable spotlight. For 9800 CORE5 tracks. Aluminum body. Polycarbonate Lens 34°. Ø14x51,8 mm.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
PUNTO SPOT CORE5 F14
technical specifications
PUNTO SPOT CORE5 F14
Dimmable spotlight. For 9800 CORE5 tracks. Aluminum body. Polycarbonate Lens 34°. Ø14x51,8 mm.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeF14/B5-C-0
CCT3000 K
ColourBlack
Luminous flux77 lm
Efficiency33.8 lm/W
FamilyPunto Spot
Product linePUNTO SPOT CORE5 F14
OpticsWIDE BEAM LENSES (C)
Length14 mm
CRI90
Control system24V Dimmerabile
Power2.0 W
UGR<22
MacAdam≤ 3
Lifetime>50Khr L80B10
Variants6
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
PUNTO SPOT CORE5 F14
dimensions

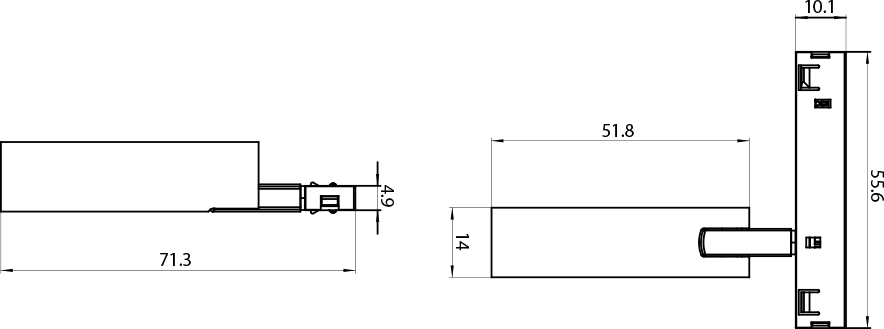

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
