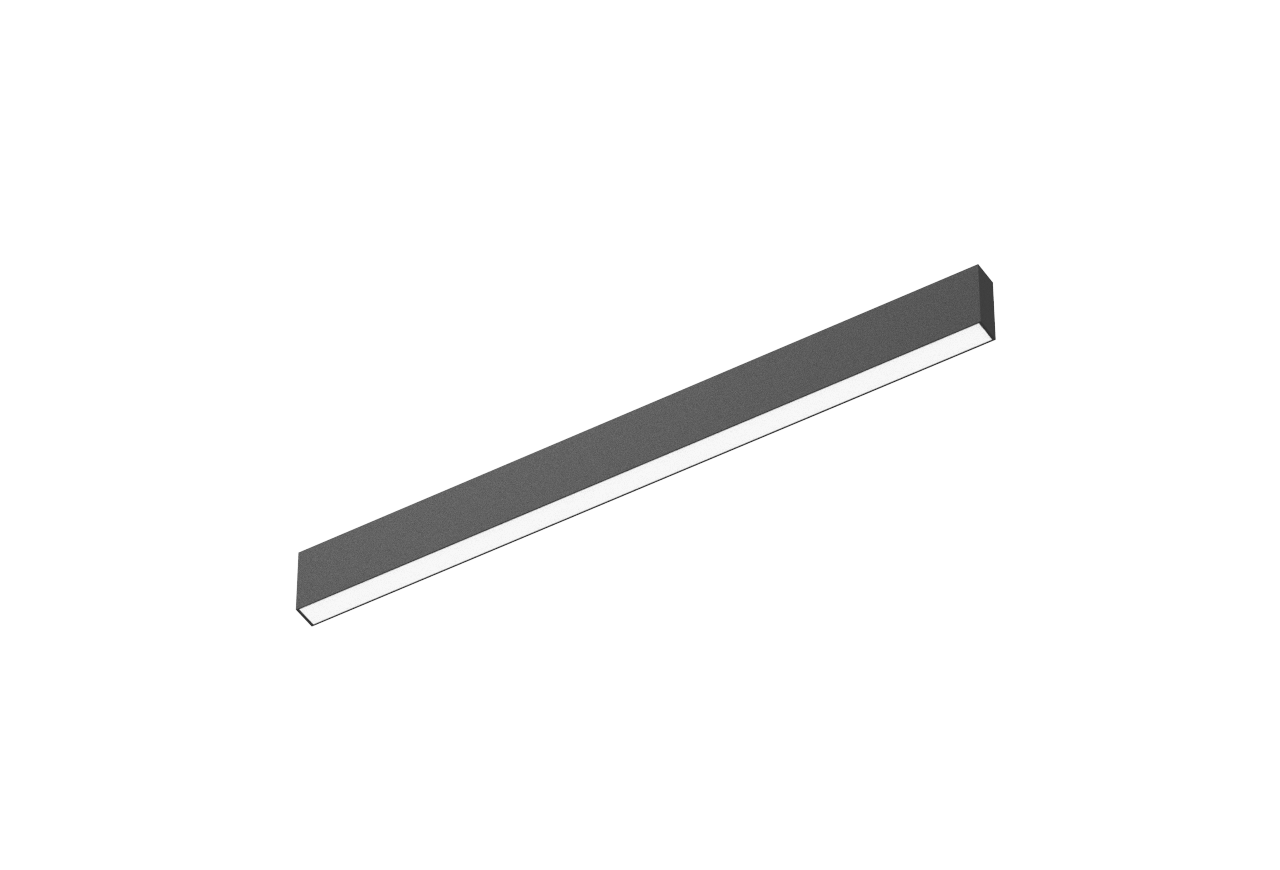

ONETRACK READY L32 WALL WASHER - SINGLE MODULE
ONETRACK READY L32
ONETRACK READY L32 WALL WASHER - SINGLE MODULE
Modulo singolo per luce lineare a 230V. Luce monoemissione. Corpo in alluminio. Schermo wall washer in policarbonato.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
ONETRACK READY L32 WALL WASHER - SINGLE MODULE
technical specifications
ONETRACK READY L32 WALL WASHER - SINGLE MODULE
Modulo singolo per luce lineare a 230V. Luce monoemissione. Corpo in alluminio. Schermo wall washer in policarbonato.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeL32S330/BG5-W-0
Length846 mm
ColourBlack
Control systemON-OFF
Luminous flux2454 lm
Power23.5 W
Efficiency104.4 lm/W
FamilyStandalone
Product lineONETRACK READY L32
CCT3000 K
OpticsWALL WASHER (W)
CRI90
UGR>28
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants16
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
ONETRACK READY L32 WALL WASHER - SINGLE MODULE
dimensions

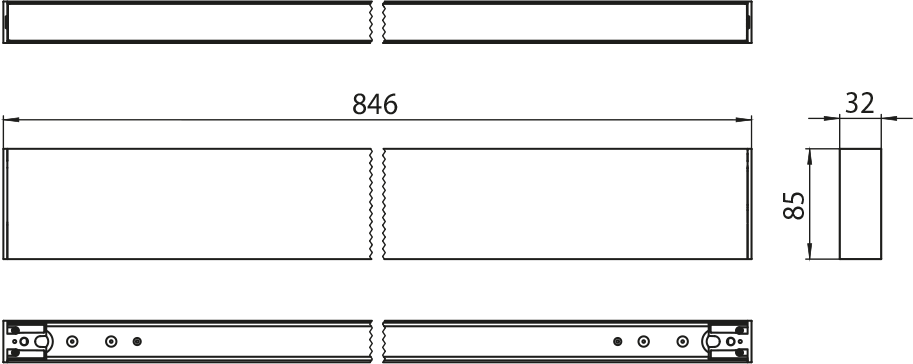

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
