ONETRACK READY L32 WALL WASHER - LINEAR MODULE BI-EMISSION
ONETRACK READY L32
ONETRACK READY L32 WALL WASHER - LINEAR MODULE BI-EMISSION
230V in row linear light module. Monoemission light. Aluminum body. Polycarbonate wall washer screen. L(mm): 1121.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
ONETRACK READY L32 WALL WASHER - LINEAR MODULE BI-EMISSION
technical specifications
ONETRACK READY L32 WALL WASHER - LINEAR MODULE BI-EMISSION
230V in row linear light module. Monoemission light. Aluminum body. Polycarbonate wall washer screen. L(mm): 1121.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeL32F443/BG5-W-0
ColourBlack
Control systemON-OFF
FamilyStandalone
Product lineONETRACK READY L32
CCT3000 K
OpticsWALL WASHER (W)
Length1121 mm
CRI90
Luminous flux4865 lm
Power52.5 W
Efficiency92.7 lm/W
UGR<28
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants6
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
ONETRACK READY L32 WALL WASHER - LINEAR MODULE BI-EMISSION
dimensions

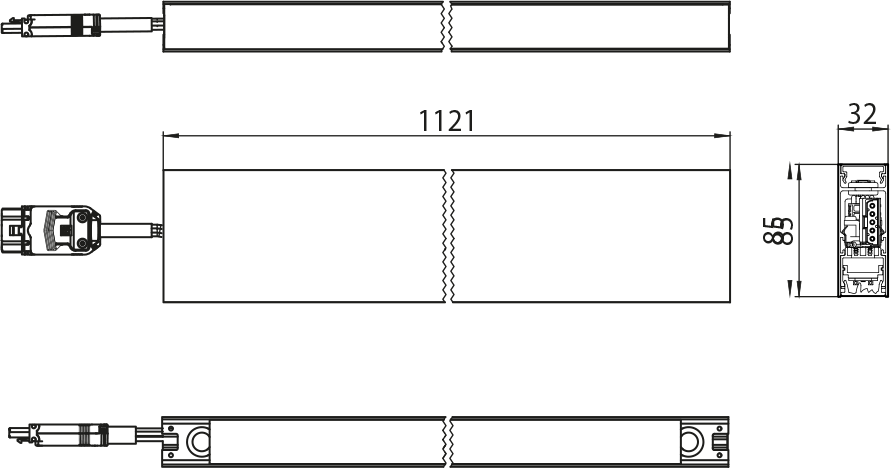

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
