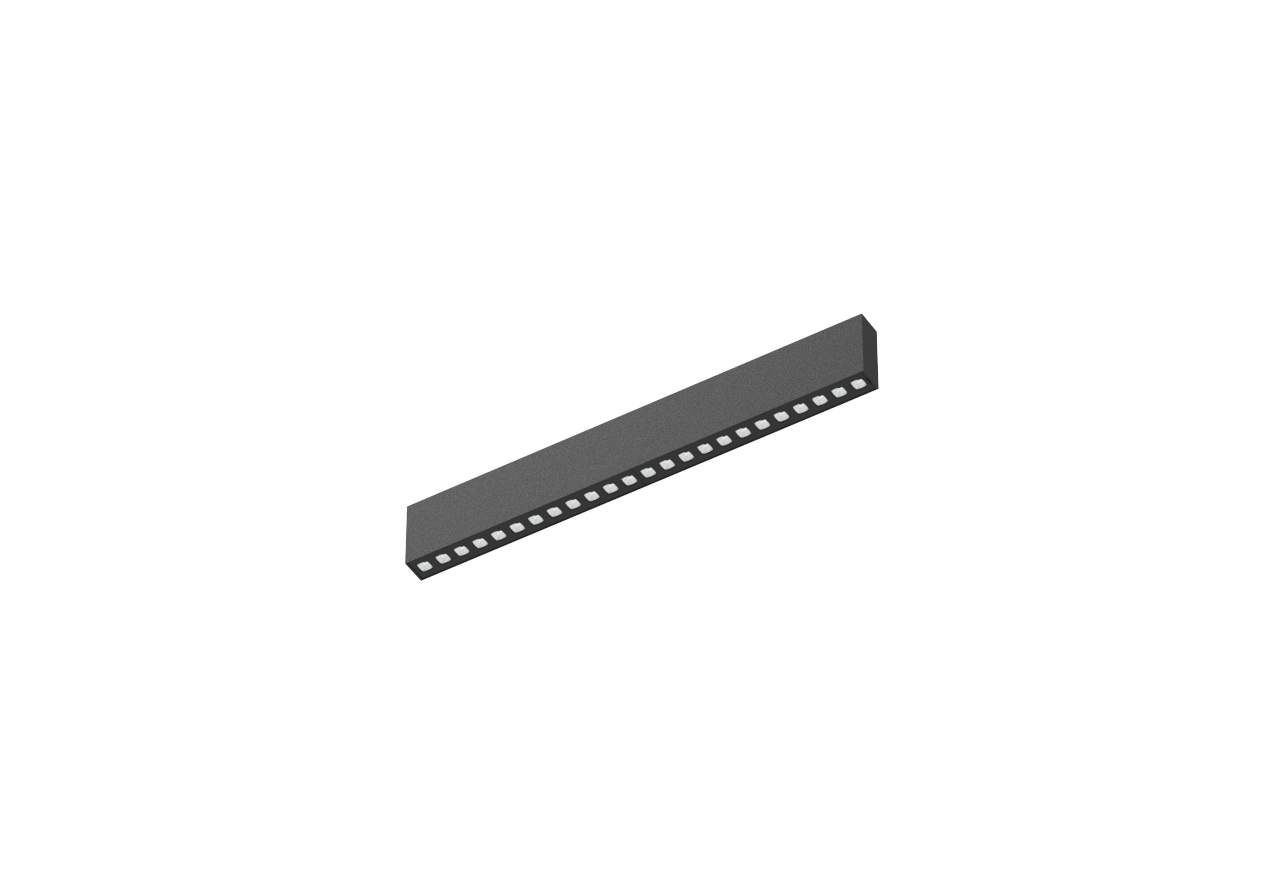

ONETRACK READY L32 UGR - SINGLE MODULE
ONETRACK READY L32
ONETRACK READY L32 UGR - SINGLE MODULE
Modulo singolo per luce lineare a 230V. Luce monoemissione. Corpo in alluminio. Riflettore UGR in policarbonato.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
ONETRACK READY L32 UGR - SINGLE MODULE
technical specifications
ONETRACK READY L32 UGR - SINGLE MODULE
Modulo singolo per luce lineare a 230V. Luce monoemissione. Corpo in alluminio. Riflettore UGR in policarbonato. Cover in poliammide.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeL32S220/BG3-U-1
Length566 mm
CRI95
ColourBlack
Control system0...10V
Luminous flux825 lm
Power10.6 W
Efficiency77.8 lm/W
FamilyStandalone
Product lineONETRACK READY L32
CCT3000 K
OpticsUGR REFLECTOR (U)
UGR<19
MacAdam≤ 3
Lifetime>50Khr L90B10
Variants16
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
ONETRACK READY L32 UGR - SINGLE MODULE
dimensions

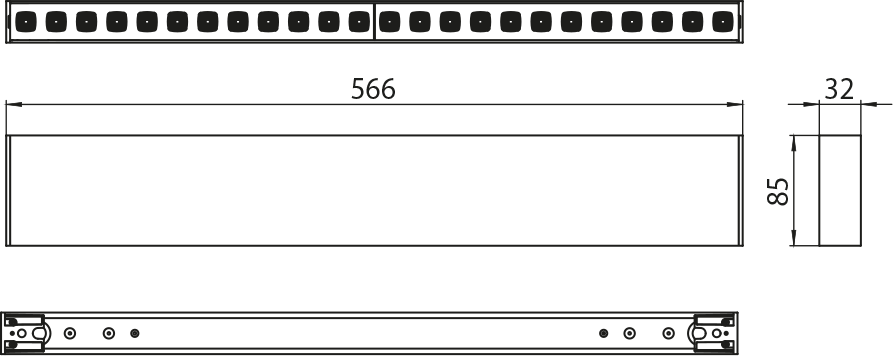

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
