ONETRACK READY L32 OPALINE - LINEAR MODULE BI-EMISSION
ONETRACK READY L32
ONETRACK READY L32 OPALINE - LINEAR MODULE BI-EMISSION
230V in row linear light module. Biemission light. Aluminum body. Polycarbonate opal screen. L(mm): 1121.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
ONETRACK READY L32 OPALINE - LINEAR MODULE BI-EMISSION
technical specifications
ONETRACK READY L32 OPALINE - LINEAR MODULE BI-EMISSION
230V in row linear light module. Biemission light. Aluminum body. Polycarbonate opal screen. L(mm): 1121.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeL32F443/BG5-O-0
ColourBlack
Control systemON-OFF
FamilyStandalone
Product lineONETRACK READY L32
CCT3000 K
OpticsOPAL (O)
Length1121 mm
CRI90
Luminous flux3541 lm
Power46.9 W
Efficiency75.5 lm/W
UGR<28
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants6
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
ONETRACK READY L32 OPALINE - LINEAR MODULE BI-EMISSION
dimensions

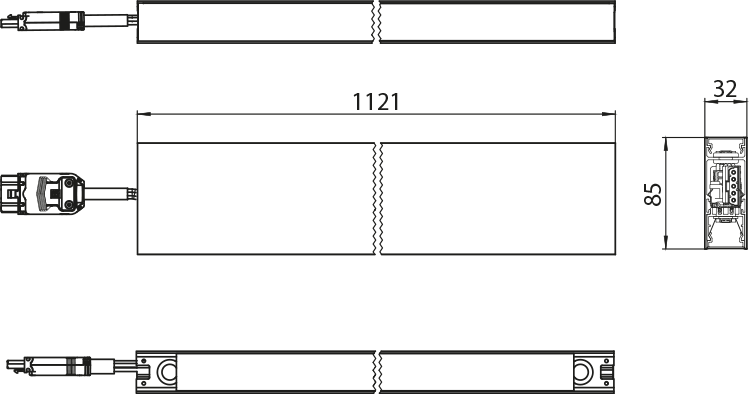

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
