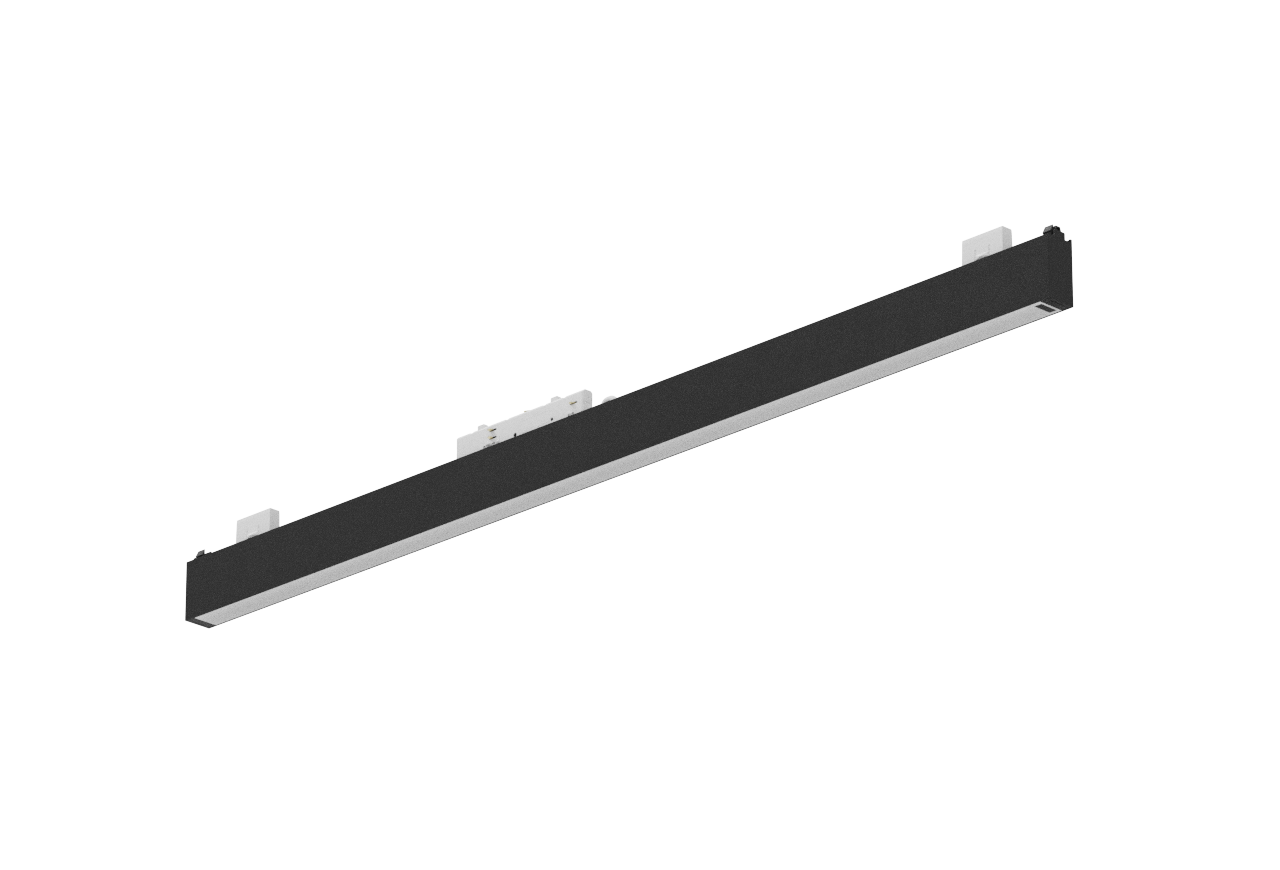

MODULINE ONTRACK M32 WALL WASHER
MODULINE ONTRACK M32
MODULINE ONTRACK M32 WALL WASHER
230V linear light module. For 9000/9000A ONETRACK™ range tracks. Aluminum body. Wall washer screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
MODULINE ONTRACK M32 WALL WASHER
technical specifications
MODULINE ONTRACK M32 WALL WASHER
230V linear light module. For 9000/9000A ONETRACK™ range tracks. Aluminum body. Wall washer screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM321146/B5-W-0
Length1146 mm
ColourBlack
Control systemON-OFF
Luminous flux3272 lm
Power30.5 W
Efficiency107.3 lm/W
FamilyModuline
Product lineMODULINE ONTRACK M32
CCT3000 K
OpticsWALL WASHER (W)
CRI90
UGR>28
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants8
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
MODULINE ONTRACK M32 WALL WASHER
dimensions

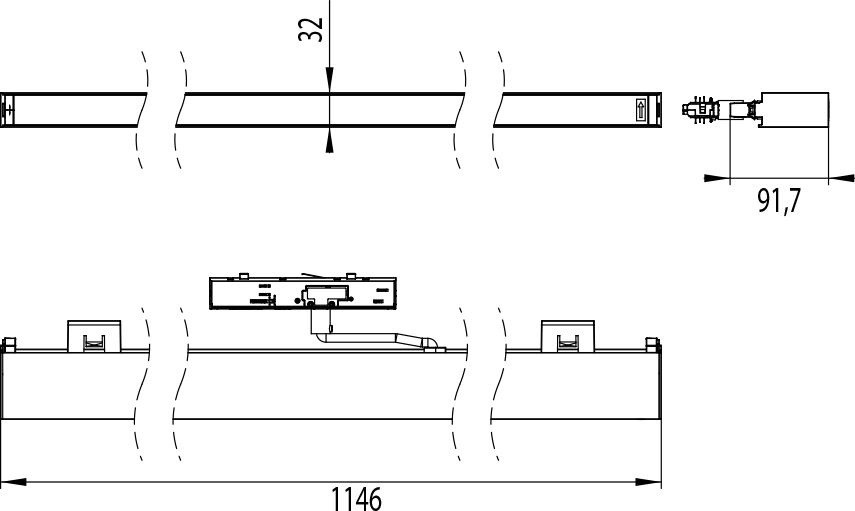

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
