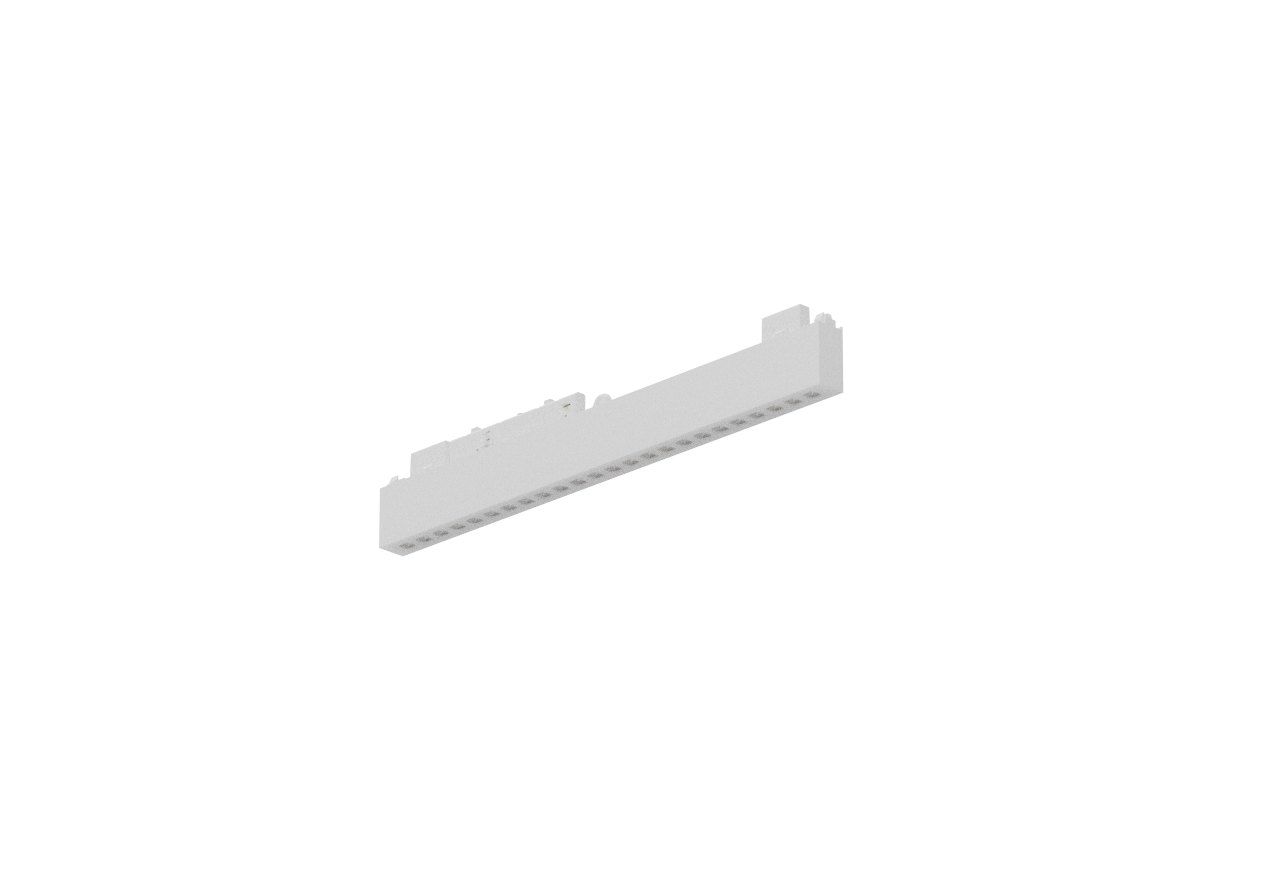

MODULINE ONTRACK M32 UGR
MODULINE ONTRACK M32
MODULINE ONTRACK M32 UGR
230V linear light module. For 9000/9000A ONETRACK™ range tracks. Aluminum body. UGR reflector. Polyamide cover.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
MODULINE ONTRACK M32 UGR
technical specifications
MODULINE ONTRACK M32 UGR
230V linear light module. For 9000/9000A ONETRACK™ range tracks. Aluminum body. UGR reflector. Polyamide cover.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM32585/W3-U-0
Length585 mm
CRI95
ColourWhite
Control systemON-OFF
Luminous flux825 lm
Power10.6 W
Efficiency77.8 lm/W
FamilyModuline
Product lineMODULINE ONTRACK M32
CCT3000 K
OpticsUGR REFLECTOR (U)
UGR<19
MacAdam≤ 3
Lifetime>50Khr L90B10
Variants8
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
MODULINE ONTRACK M32 UGR
dimensions
Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
