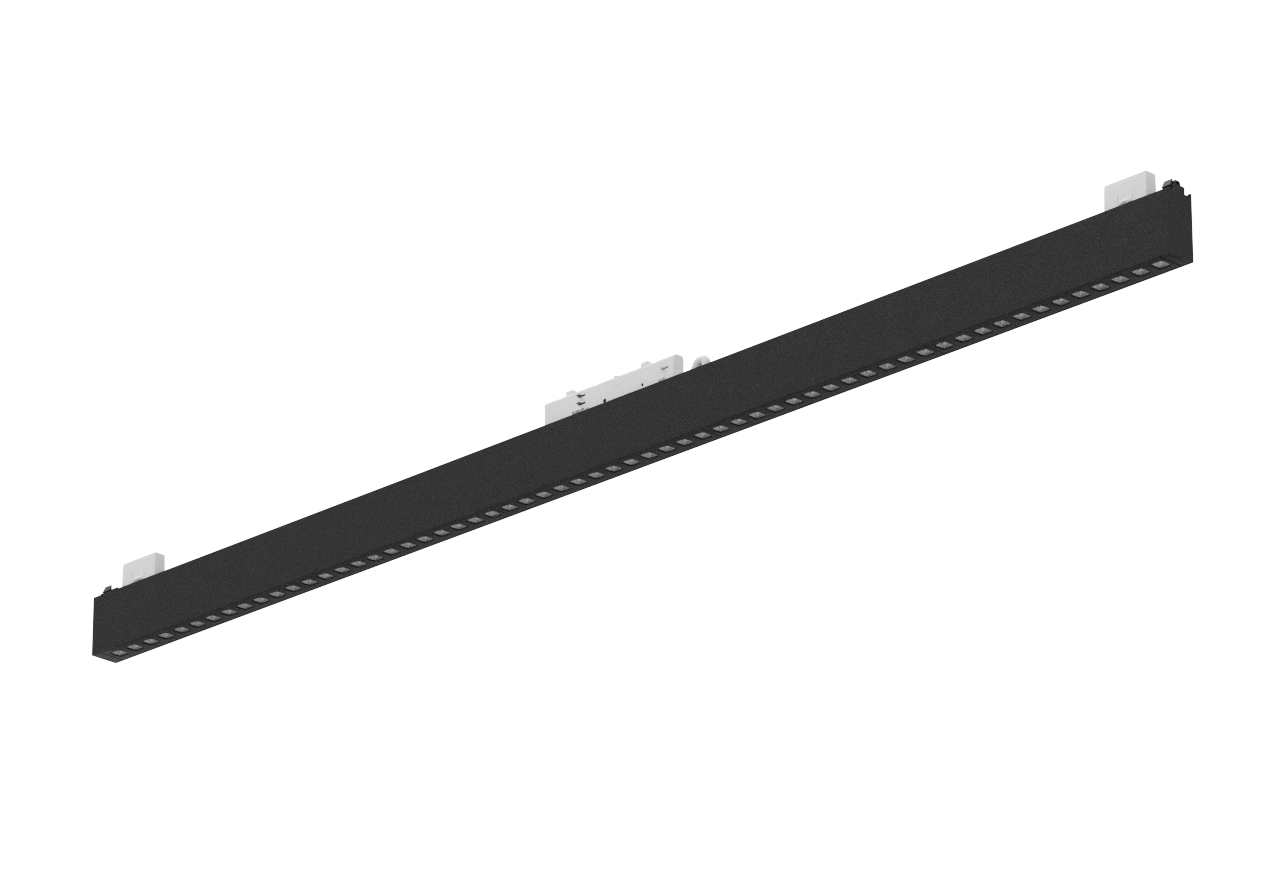

MODULINE ONTRACK M32 UGR
MODULINE ONTRACK M32
MODULINE ONTRACK M32 UGR
230V linear light module. For 9000/9000A ONETRACK™ range tracks. Aluminum body. UGR reflector. Polyamide cover.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
MODULINE ONTRACK M32 UGR
technical specifications
MODULINE ONTRACK M32 UGR
230V linear light module. For 9000/9000A ONETRACK™ range tracks. Aluminum body. UGR reflector. Polyamide cover.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM321426/B1-U-0
Length1426 mm
CRI90
ColourBlack
Control systemON-OFF
Luminous flux2014 lm
Power23.2 W
Efficiency86.8 lm/W
DetailsHigh output version
FamilyModuline
Product lineMODULINE ONTRACK M32
CCT3000 K
OpticsUGR REFLECTOR (U)
UGR<19
MacAdam≤ 3
Lifetime>50Khr L90B10
Variants8
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
MODULINE ONTRACK M32 UGR
dimensions

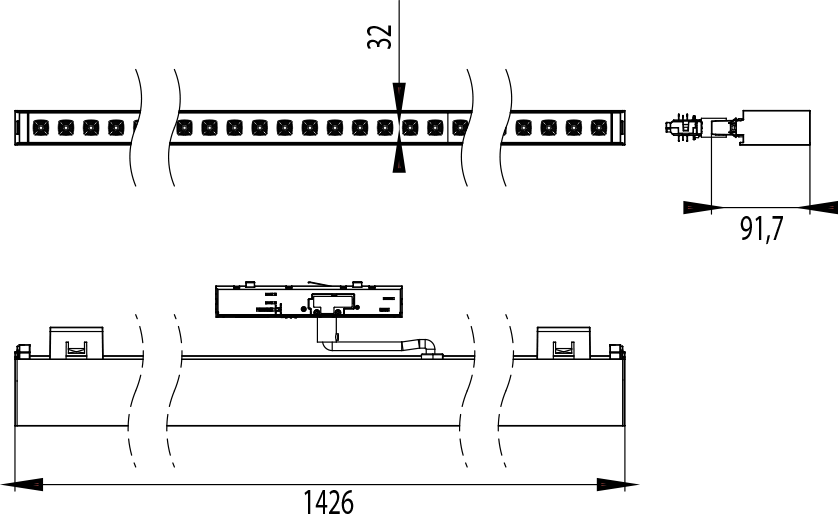

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
