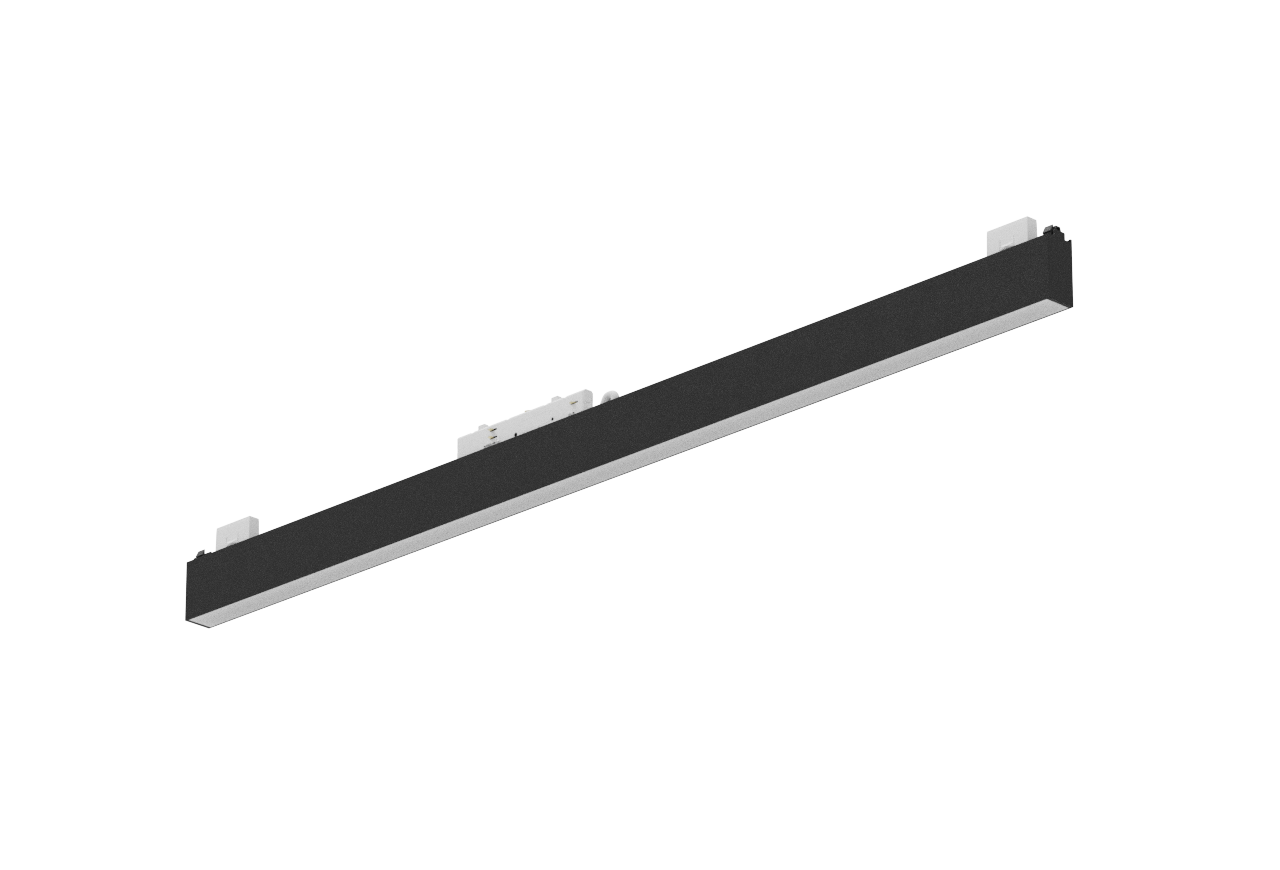

MODULINE ONTRACK M32 OPAL
MODULINE ONTRACK M32
MODULINE ONTRACK M32 OPAL
230V linear light module. For 9000/9000A ONETRACK™ range tracks. Aluminum body. Opal screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
MODULINE ONTRACK M32 OPAL
technical specifications
MODULINE ONTRACK M32 OPAL
230V linear light module. For 9000/9000A ONETRACK™ range tracks. Aluminum body. Opal screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM321146/B5-O-1
Length1146 mm
ColourBlack
Control system0...10V
Luminous flux1948 lm
Power24.9 W
Efficiency78.2 lm/W
FamilyModuline
Product lineMODULINE ONTRACK M32
CCT3000 K
OpticsOPAL (O)
CRI90
UGR>28
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants8
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
MODULINE ONTRACK M32 OPAL
dimensions

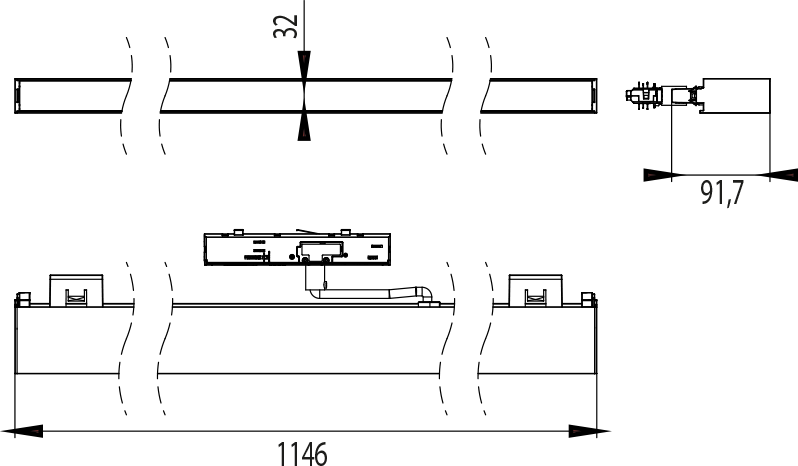

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
