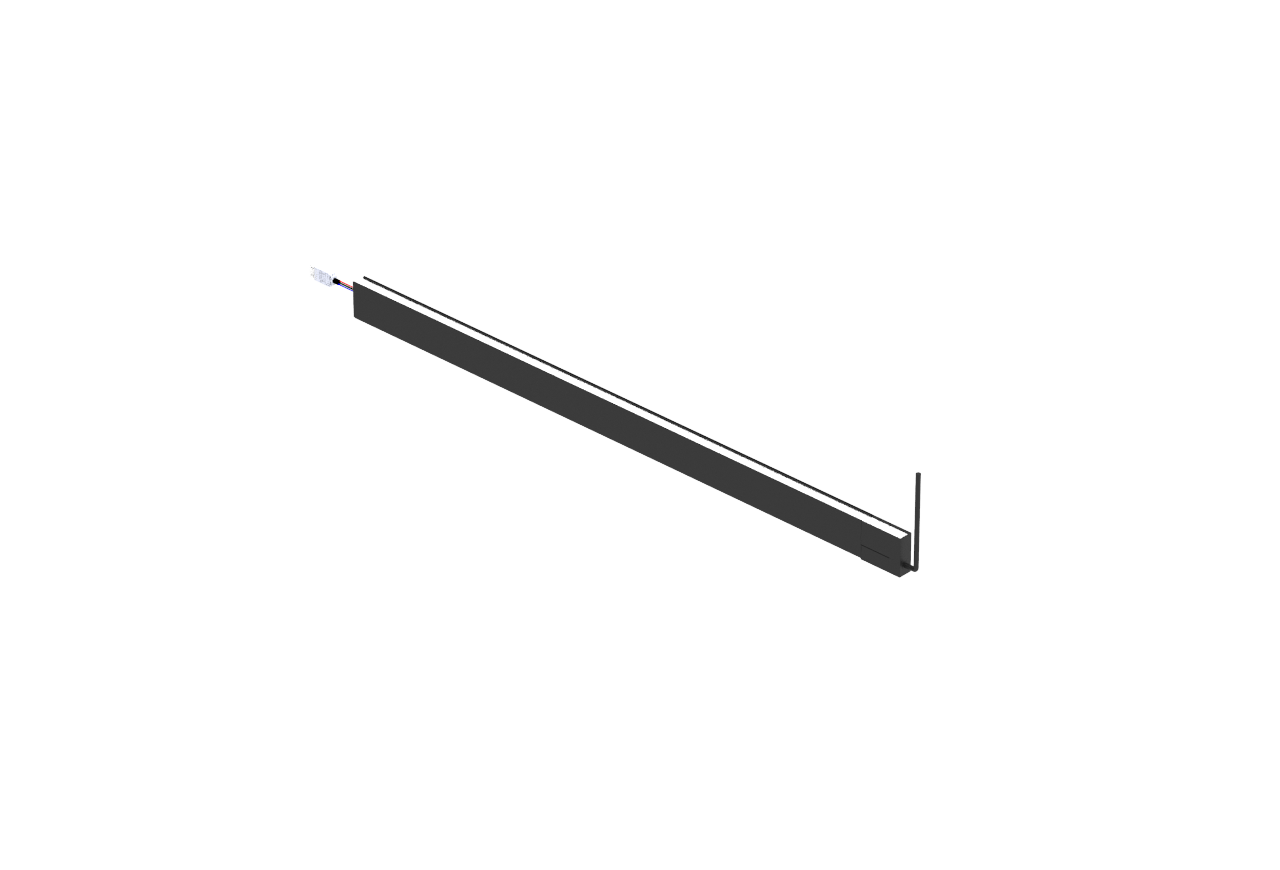

H32 TRACK WITH INTEGRATED LIGHT
H32 TRACK WITH INTEGRATED LIGHT
H32 TRACK WITH INTEGRATED LIGHT
230V linear light module. Suitable with ONETRACK™ range accesories. Aluminum body. Opal screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
H32 TRACK WITH INTEGRATED LIGHT
technical specifications
H32 TRACK WITH INTEGRATED LIGHT
230V linear light module. Suitable with ONETRACK™ range accesories. Aluminum body. Opal screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeH32S1405/B5-O-0
Length1405 mm
ColourBlack
Control systemON-OFF
Luminous flux2384 lm
Power34.5 W
Efficiency69.1 lm/W
DetailsUP version, Starter module
FamilyH32
Product lineH32 TRACK WITH INTEGRATED LIGHT
CCT3000 K
OpticsOPAL (O)
CRI90
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants32
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
H32 TRACK WITH INTEGRATED LIGHT
dimensions

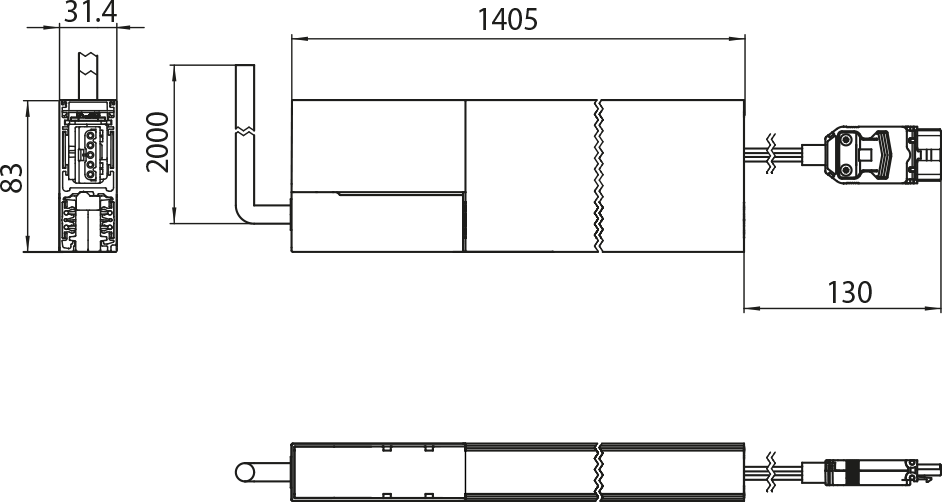

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
