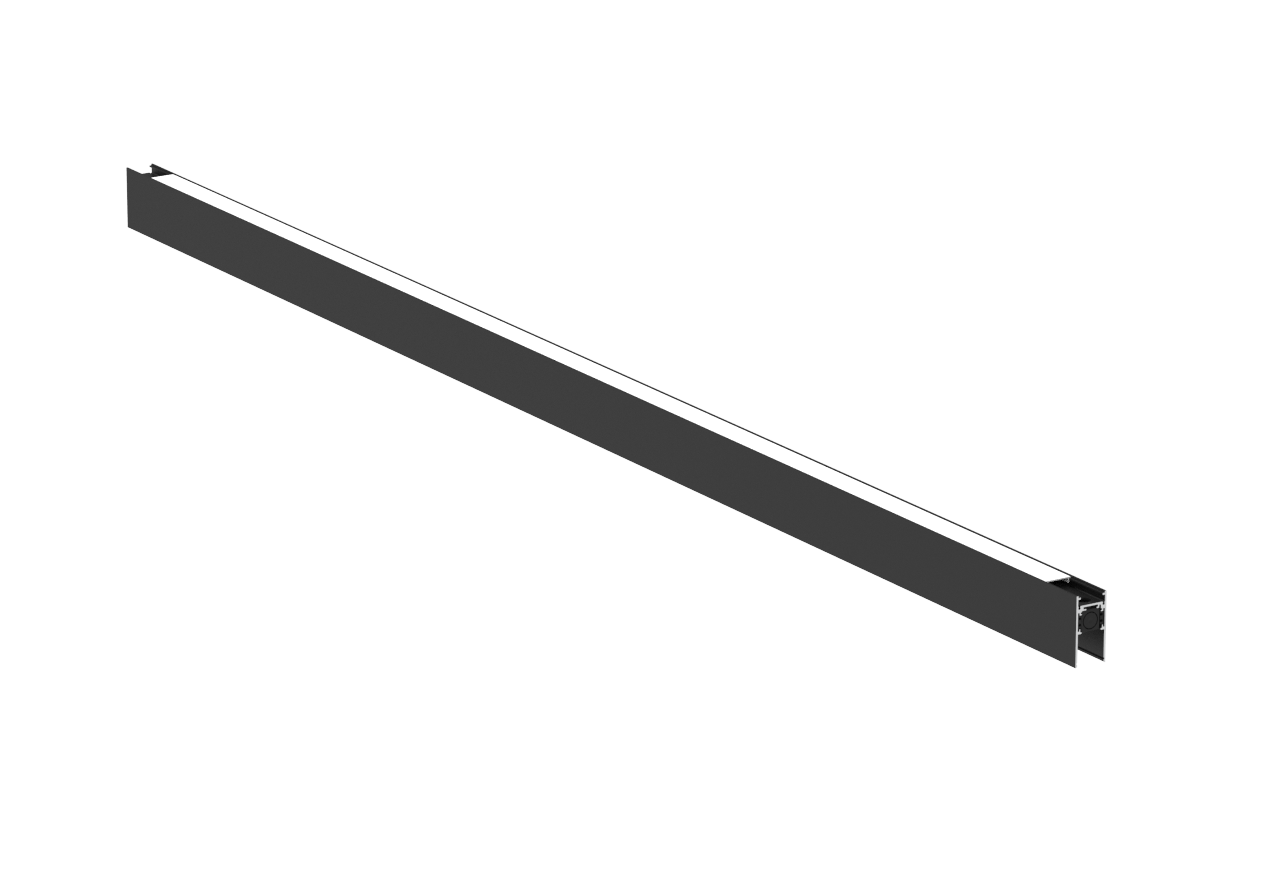

H26 UP LIGHT TRACK
H26 UP LIGHT TRACK
H26 UP LIGHT TRACK
48V linear light module. Suspension fixing. Suitable with MULTISYSTEM® EVO range accesories. Polycarbonate opal screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
H26 UP LIGHT TRACK
technical specifications
H26 UP LIGHT TRACK
48V linear light module. Suspension fixing. Suitable with MULTISYSTEM® EVO range accesories. Polycarbonate opal screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeH261402/B5-O-1
Length1401 mm
ColourBlack
Control system0...10V
Luminous flux1900 lm
Power21.5 W
Efficiency88.4 lm/W
FamilyH26
Product lineH26 UP LIGHT TRACK
CCT3000 K
OpticsOPAL (O)
CRI90
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants8
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
H26 UP LIGHT TRACK
dimensions

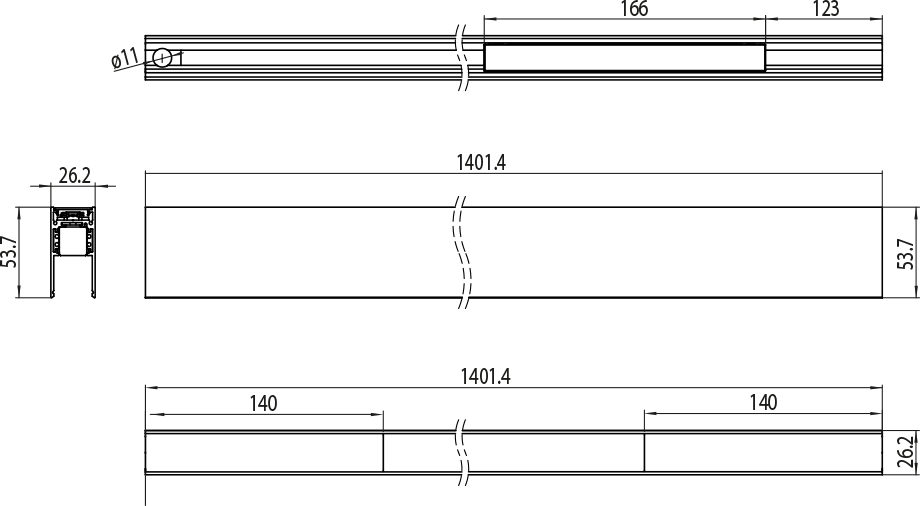

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
