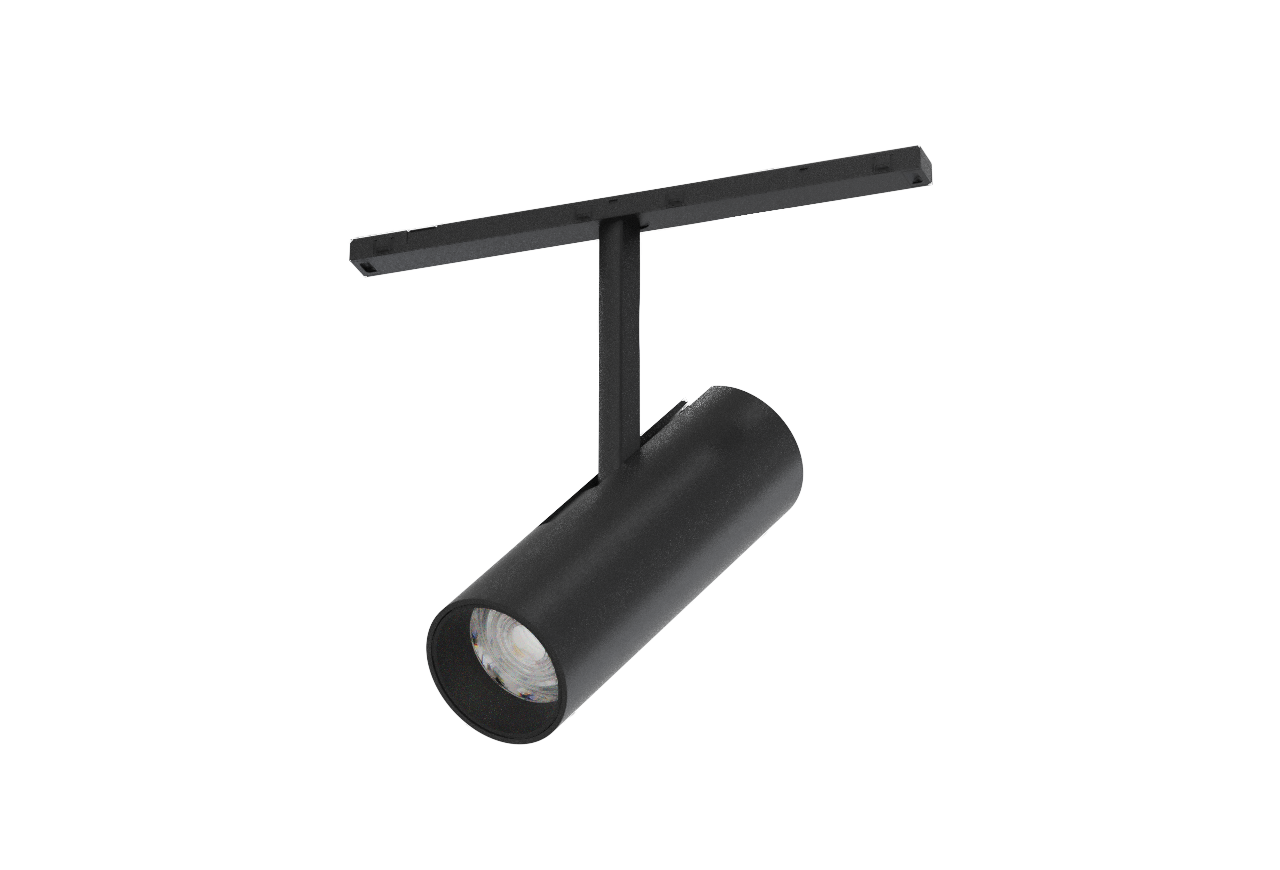

CLIC SPOT F41 MICRO M1
CLIC SPOT F41 MICRO
CLIC SPOT F41 MICRO M1
48V spot. For 9600 micro tracks. Aluminum body. Ø41x176mm.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
CLIC SPOT F41 MICRO M1
technical specifications
CLIC SPOT F41 MICRO M1
48V spot. For 9600 micro tracks. Aluminum body. Ø41x176mm.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeF41/B5-A-2-M1
CCT3000 K
OpticsNARROW BEAM LENSES (A)
ColourBlack
Control systemDALI 2
Luminous flux730 lm
Efficiency80.3 lm/W
UGR≤ 16
DetailsPMMA Lens 18°
FamilyClic Spot
Product lineCLIC SPOT F41 MICRO
CRI90
Power9.1 W
MacAdam≤ 3
Lifetime>60Khr L85B5
Variants108
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
CLIC SPOT F41 MICRO M1
dimensions

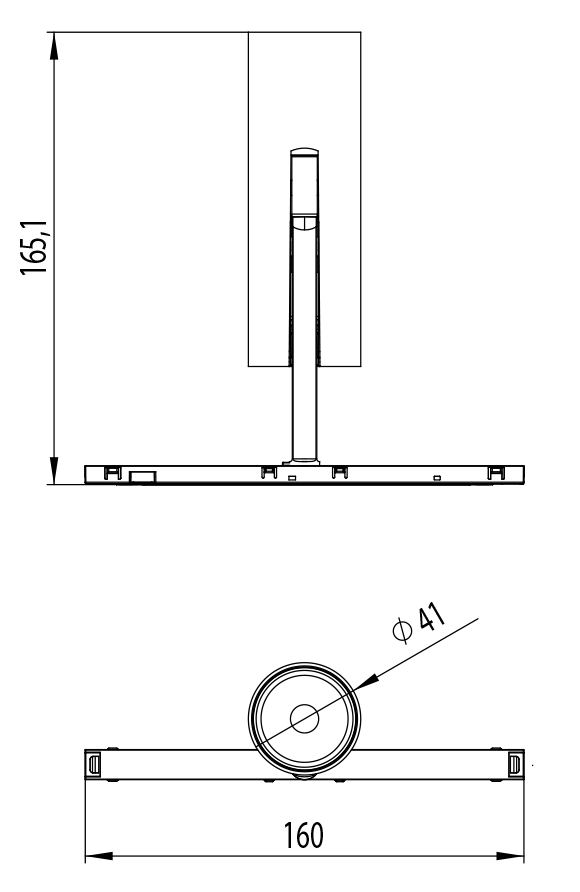

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
