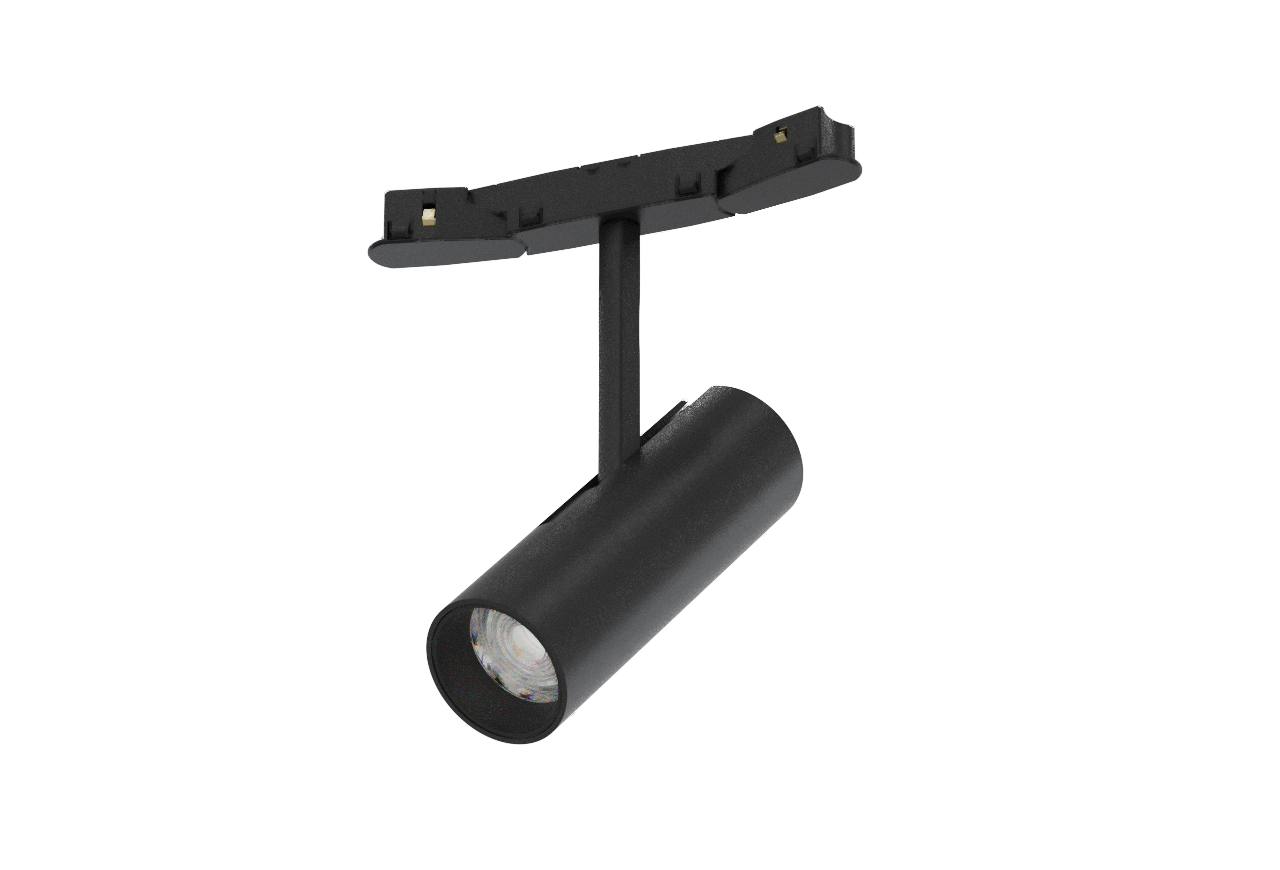

CLIC SPOT F41 EVO ADJUSTABLE ADAPTER
CLIC SPOT F41 EVO
CLIC SPOT F41 EVO ADJUSTABLE ADAPTER
48V spot. For 9500-E EVO curved tracks. Aluminum body. Ø41x176mm.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
CLIC SPOT F41 EVO ADJUSTABLE ADAPTER
technical specifications
CLIC SPOT F41 EVO ADJUSTABLE ADAPTER
48V spot. For 9500-E EVO curved tracks. Aluminum body. Ø41x176mm.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeF41/B5-A-2-SE
CCT3000 K
OpticsNARROW BEAM LENSES (A)
ColourBlack
Control systemDALI 2
Luminous flux730 lm
Efficiency80.3 lm/W
UGR≤ 16
DetailsPMMA Lens 18°
FamilyClic Spot
Product lineCLIC SPOT F41 EVO
CRI90
Power9.1 W
MacAdam≤ 3
Lifetime>60Khr L85B5
Variants108
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
CLIC SPOT F41 EVO ADJUSTABLE ADAPTER
dimensions

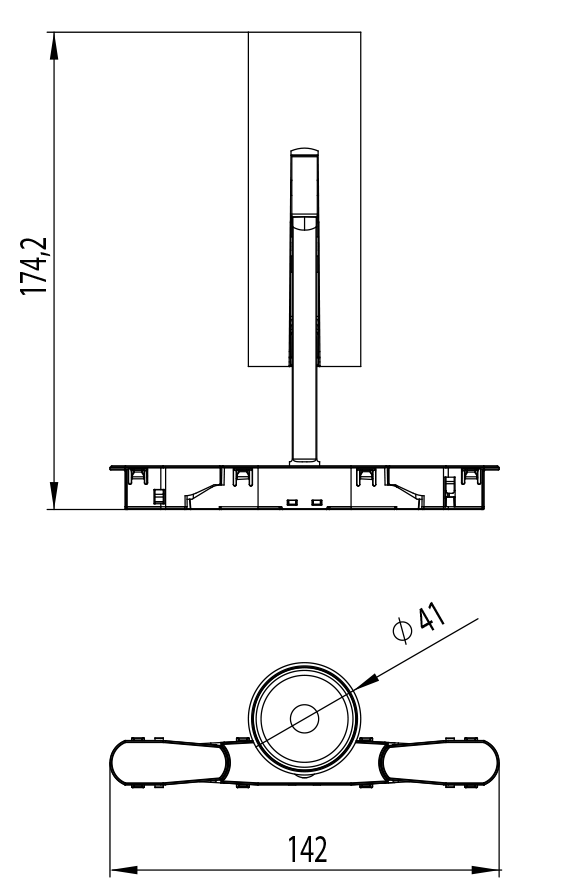

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
